You pay for water to keep your garden alive.
Then it rains… and thousands of gallons of water run straight off your roof and into the storm drain.
It’s a strange system when you think about it.
Rainwater is free, plants love it, and it literally falls on your house — yet most homeowners never collect a drop.
That’s why rain harvesting is making a quiet comeback. With a simple gravity-fed drip irrigation from a rain barrel, you can capture rain from your roof and slowly water your garden without pumps, electricity, or expensive equipment.
And the best part? You can build the entire system for under $100 with basic parts.
This guide explains how it works, what it costs, and how to set up a rain barrel drip irrigation system that quietly waters your plants every time it rains.

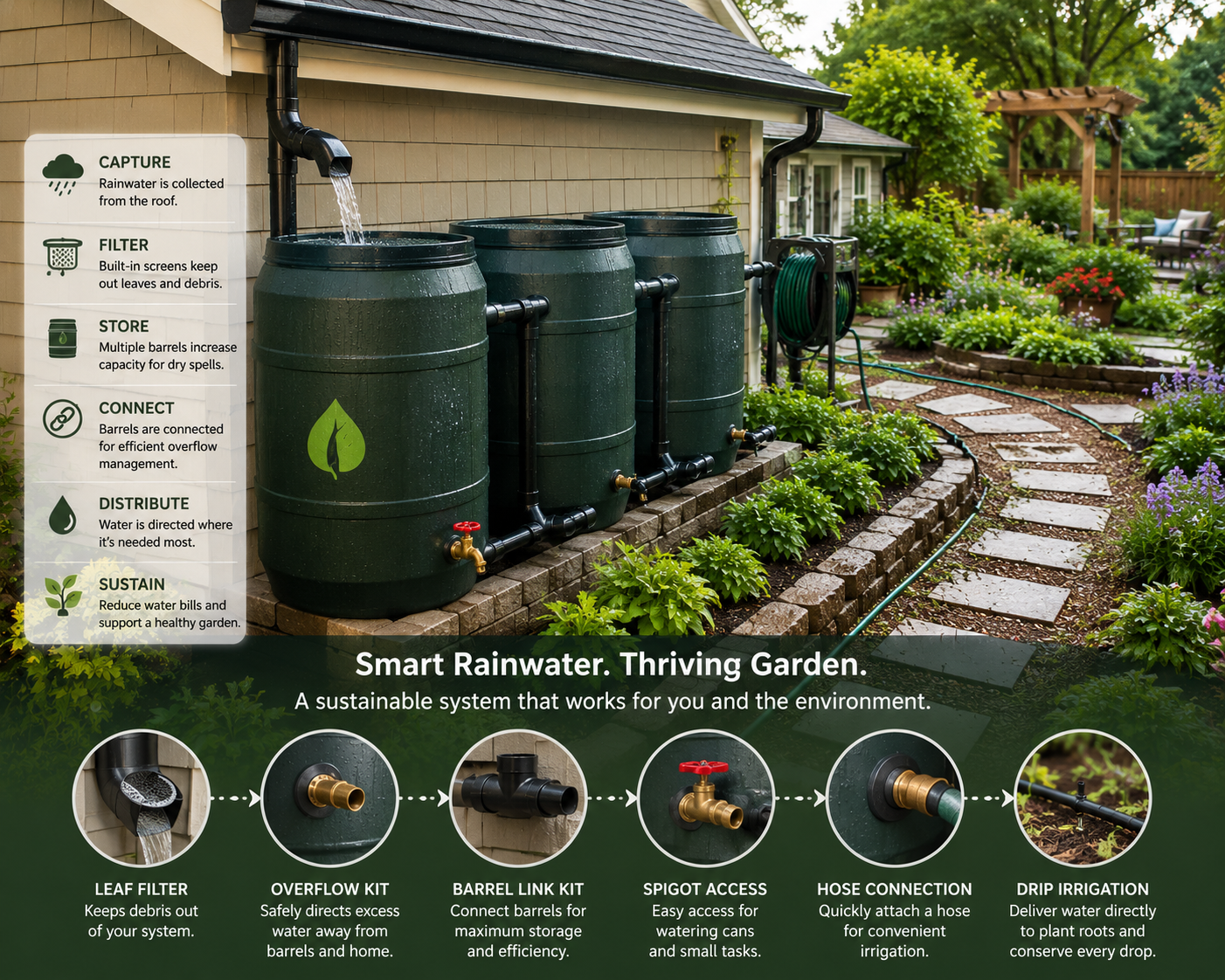

What a Gravity-Fed Rain Barrel System Is

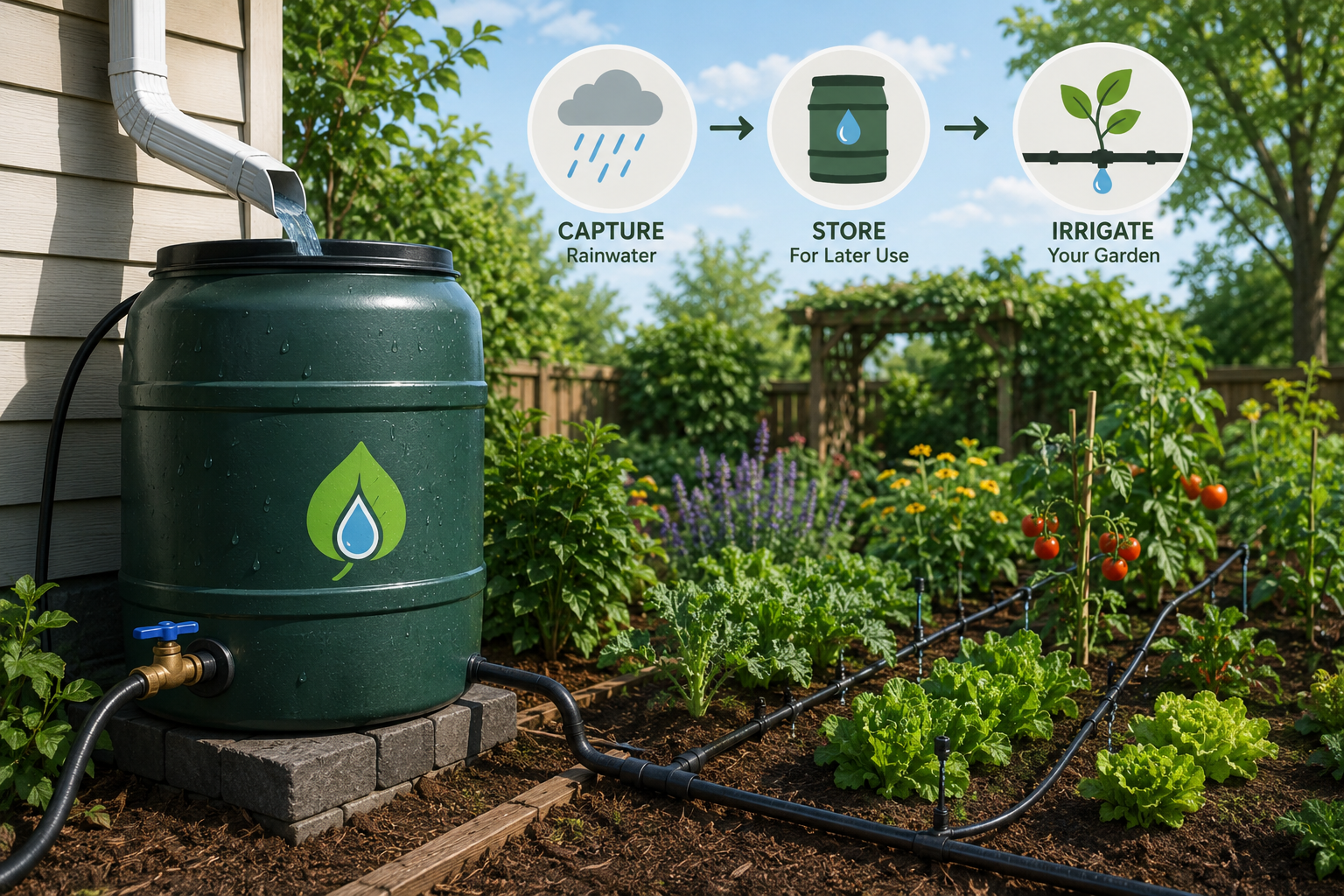

A gravity-fed rain barrel system collects rainwater from your roof and stores it in a barrel connected to a low-pressure drip irrigation line. Because the barrel is elevated, gravity pushes water through the irrigation tubing to nearby plants.
There are no pumps or timers required.
The system works because water naturally flows downhill, creating gentle pressure inside the tubing.
Rainwater harvesting has been used for centuries, and modern versions simply adapt the concept for residential gardens.
Real Cost Breakdown
Rain barrel irrigation systems are one of the most affordable backyard upgrades.
In 2026, most DIY systems cost $40 to $100 depending on materials.
(Source: EPA WaterSense rainwater harvesting resources; retail hardware averages)
Typical Rain Barrel System Costs
Component |
Price Range |
Notes |
|---|---|---|
Food-grade rain barrel |
$20 – $50 |
recycled barrels common |
Spigot or bulkhead fitting |
$8 – $20 |
connects tubing |
Drip irrigation tubing |
$10 – $30 |
25–50 ft kit |
Mesh screen filter |
$5 – $15 |
prevents debris |
Cinder blocks or stand |
$5 – $20 |
creates gravity pressure |
Many municipalities even offer free or discounted rain barrels through water conservation programs.
Hidden or Additional Costs
Even simple systems may require a few optional upgrades.
Additional Item |
Typical Price |
|---|---|
Overflow hose |
$5 – $15 |
Leaf diverter |
$20 – $40 |
Downspout adapter |
$10 – $20 |
Extra drip emitters |
$5 – $15 |
(Source: Angi rain harvesting installation estimates)
A Realistic All-In Example
Here’s a typical DIY rain harvesting setup under $100.
Used food-grade barrel: $35
Spigot bulkhead kit: $15
Drip irrigation tubing kit: $25
Cinder blocks for stand: $12
Leaf screen filter: $8
Total system cost: about $95
That’s enough to water a small garden bed or several containers.
Why Rain Harvesting Is Trending
1. Outdoor water use is significant
Outdoor irrigation accounts for nearly 30% of household water use in the United States, according to the EPA.
Rainwater systems can reduce that demand.
2. Plants prefer rainwater
Rainwater contains fewer dissolved salts and chemicals than treated municipal water.
Gardeners often report healthier plant growth when using rainwater.
3. Stormwater runoff is increasing
Urban areas generate large volumes of runoff that can overwhelm drainage systems.
Rain barrels help capture and slow water before it enters storm drains (EPA WaterSense).
Environmental engineer Dr. Allen Davis notes:
“Even small-scale rainwater harvesting systems can reduce runoff and conserve potable water.”
Step-by-Step: Build a Gravity-Fed Rain Barrel Irrigation System
Step 1: Choose the Right Barrel
A standard 55-gallon food-grade barrel works well.
Make sure the barrel previously contained safe materials (many are recycled food containers).
Avoid barrels that stored chemicals.
Step 2: Elevate the Barrel
Gravity systems need height.
Place the barrel on:
cinder blocks
a wooden stand
stacked bricks
Elevating the barrel 2–3 feet improves water pressure through drip tubing.
Step 3: Install the Spigot
Drill a hole near the bottom of the barrel and install a bulkhead fitting or hose spigot.
This is where your drip irrigation tubing will connect.
Many kits include rubber gaskets to prevent leaks.
Step 4: Connect the Downspout
Cut your gutter downspout and redirect it into the barrel.
Install a mesh screen or leaf filter to prevent debris entering the water.
Step 5: Attach Drip Irrigation Tubing
Connect low-pressure drip tubing to the spigot.
Run the tubing through garden beds and attach emitters near plant roots.
Because gravity pressure is low, shorter irrigation lines work best.
Genuine Advantages
1. Completely Free Water
Rainwater collected from your roof can irrigate plants without using municipal water.
Over time, this can reduce water bills.
2. No Electricity or Pumps Required
Gravity does all the work.
That means fewer mechanical components and lower maintenance.
3. Plants Prefer Rainwater
Rainwater lacks chlorine and other chemicals commonly found in tap water.
Many gardeners report improved plant health.
4. Reduces Stormwater Runoff
Rain barrels capture water that would otherwise flow into storm drains.
This helps reduce localized flooding and erosion.
Real Downsides
1. Limited Water Pressure
Gravity systems produce low pressure.
Drip irrigation works well, but sprinklers usually won’t.
2. Water Supply Depends on Rainfall
During dry periods the barrel may empty quickly.
Many gardeners connect multiple barrels together for extra storage.
3. Seasonal Maintenance Required
Rain barrels should be drained before freezing weather to prevent cracking.
Cleaning once or twice per season is also recommended.
Does Rain Harvesting Add Home Value?
Rain barrels rarely affect appraised property value directly.
However, sustainable landscaping features are increasingly appealing to buyers.
Water conservation systems can improve environmental appeal and gardening functionality.
Who Should (and Shouldn't) Build One
Good Fit
A gravity-fed rain barrel irrigation system works well if you:
maintain vegetable gardens or flower beds
want to reduce water usage
enjoy DIY projects
live in areas with moderate rainfall
Probably Not Worth It
This system may not be ideal if you:
rely heavily on large sprinkler systems
live in extremely dry climates
have limited roof runoff areas
People Also Ask
How much water can a rain barrel collect?
A 1,000 square foot roof can collect about 600 gallons of water from just one inch of rain (EPA WaterSense).
Can rain barrels power drip irrigation?
Yes. Elevated barrels can supply low-pressure drip irrigation lines for garden beds and containers.
How many plants can a 55-gallon rain barrel water?
Depending on emitter flow rates, a single barrel can water 10–30 plants during a typical irrigation cycle.
Are rain barrels legal everywhere?
Most U.S. states allow rainwater harvesting, though some areas regulate large-scale systems.
Final Take
Rainwater harvesting isn’t a new idea.
It’s actually one of the oldest forms of irrigation humans have used.
The difference today is how easy it has become.
With a barrel, a few fittings, and some drip tubing, you can turn your roof into a free water supply for your garden.
And once you watch plants thriving on rainwater that would otherwise run down the street…
…it’s hard to go back to watering them with a hose.
